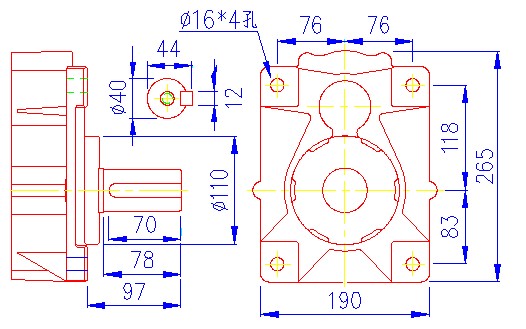

KFA-150缓冲型圣音马达图
KFA-150缓冲型圣音马达图参数
| KFA-150 KFB-150 KFH-150 KFK-150 KFK-150 KFA-200 KFB-200 KFH-200 KFK-200缓冲型 | |||||||
| 重量：56kg 长度：48cm 重量：66kg 长度：51cm | |||||||
| 型号 | 马力 | 级数 | 电压 | 减速比 | 转速RPM | 转出轴径 | |
| MODEL | Kw(HP) | P | VOLTAGE | SPEED RATID | 50HZ | 60HZ | |
| KFA-150 | 1.1KW(1.5HP) | 4 | 220V-600V | 16:01 | 92 | 110 | M 3.5 M 4 M 5 M 6 |
| 0.75KW(1HP) | 6 | 61 | 73 | ||||
| 0.6/0.3 KW | 4-8 | 92/46 | 110/55 | ||||
| 0.6/0.2 KW | 4-12 | 92/30 | 110/36 | ||||
| KFB-150 | 1.1KW(1.5HP) | 4 | 13.3:1 | 106 | 129 | ||
| 0.75KW(1HP) | 6 | 70 | 85 | ||||
| 0.6/0.3 KW | 4-8 | 106/53 | 129/64 | ||||
| 0.6/0.2 KW | 4-12 | 106/32 | 129/42 | ||||
| KFH-150 | 1.1KW(1.5HP) | 4 | 11.4:1 | 129 | 154 | ||
| 0.75KW(1HP) | 6 | 85 | 100 | ||||
| 0.6/0.3 KW | 4-8 | 129/64 | 154/77 | ||||
| 0.6/0.2 KW | 4-12 | 129/42 | 154/50 | ||||
| KFK-150 | 1.1KW(1.5HP) | 4 | 9.5:1 | 149 | 180 | ||
| 0.75KW(1HP) | 6 | 99 | 120 | ||||
| 0.6/0.3 KW | 4-8 | 149/74 | 180/90 | ||||
| 0.6/0.2 KW | 4-12 | 149/49 | 180/60 | ||||
| KFA-200 | 1.5KW(2HP) | 4 | 16:01 | 92 | 110 | ||
| 1.1KW(1.5HP) | 6 | 61 | 73 | ||||
| 0.75/0.37 KW | 4-8 | 92/46 | 110/55 | ||||
| 0.75/0.25 KW | 4-12 | 92/30 | 110/36 | ||||
| KFB-200 | 1.5KW(2HP) | 4 | 13.3:1 | 106 | 129 | ||
| 1.1KW(1.5HP) | 6 | 70 | 85 | ||||
| 0.75/0.37 KW | 4-8 | 106/53 | 129/64 | ||||
| 0.75/0.25 KW | 4-12 | 106/32 | 129/42 | ||||
| KFH-200 | 1.5KW(2HP) | 4 | 11.4:1 | 129 | 154 | ||
| 1.1KW(1.5HP) | 6 | 85 | 100 | ||||
| 0.75/0.37 KW | 4-8 | 129/64 | 154/77 | ||||
| 0.75/0.25 KW | 4-12 | 129/42 | 154/50 | ||||
| KFK-200 | 1.5KW(2HP) | 4 | 9.5:1 | 149 | 180 | ||
| 1.1KW(1.5HP) | 6 | 99 | 120 | ||||
| 0.75/0.37 KW | 4-8 | 149/74 | 180/90 | ||||
| 0.75/0.25 KW | 4-12 | 149/49 | 180/60 | ||||
