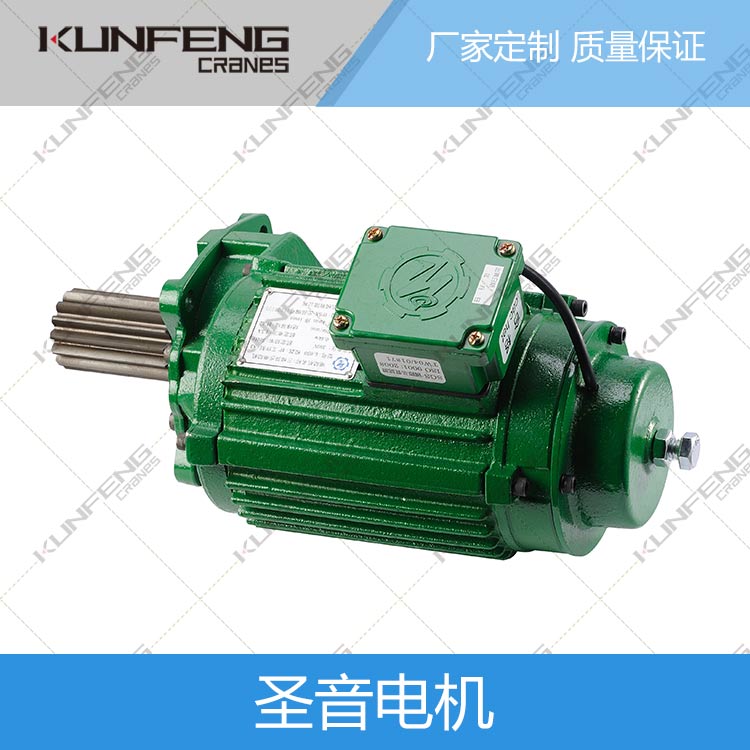

KFB-750缓冲型圣音马达
KFA-750缓冲型圣音马达参数
| KFA-750 KFB-750 KFH-750 KFK-750 KFA-1000 KFB-1000 KFH-1000 KFK-1000缓冲型 | |||||||
| 型号 | 马力 | 级数 | 电压 | 减速比 | 转速RPM | 转出轴径 | |
| MODEL | Kw(HP) | P | VOLTAGE | SPEED RATID | 50HZ | 60HZ | |
| KFA-750 | 5.5KW(7.5HP) | 4 | 220V-600V | 18.5:1 | 80 | 95 | 50x100 |
| 3.75KW(5HP) | 6 | 53 | 63 | ||||
| 3/1.5 KW | 4-8 | 80/40 | 95/47 | ||||
| 3/1 KW | 4-12 | 80/26 | 95/31 | ||||
| KFB-750 | 5.5KW(7.5HP) | 4 | 15.3:1 | 93 | 112 | ||
| 3.75KW(5HP) | 6 | 61 | 75 | ||||
| 3/1.5 KW | 4-8 | 93/46 | 112/56 | ||||
| 3/1 KW | 4-12 | 93/30 | 112/37 | ||||
| KFH-750 | 5.5KW(7.5HP) | 4 | 12:01 | 123 | 148 | ||
| 3.75KW(5HP) | 6 | 82 | 98 | ||||
| 3/1.5 KW | 4-8 | 123/61 | 148/74 | ||||
| 3/1 KW | 4-12 | 123/41 | 148/49 | ||||
| KFK-750 | 5.5KW(7.5HP) | 4 | 10:01 | 143 | 172 | ||
| 3.75KW(5HP) | 6 | 94 | 116 | ||||
| 3/1.5 KW | 4-8 | 143/71 | 172/86 | ||||
| 3/1 KW | 4-12 | 143/47 | 172/58 | ||||
| KFA-1000 | 7.5KW(10HP) | 4 | 18.5:1 | 80 | 95 | 42x48-100 | |
| 5.5KW(7.5HP) | 6 | 53 | 63 | ||||
| 3.75/1.87 KW | 4-8 | 80/40 | 95/47 | ||||
| 3.75/1.25 KW | 4-12 | 80/26 | 95/31 | ||||
| KFB-1000 | 7.5KW(10HP) | 4 | 15.3:1 | 93 | 112 | ||
| 5.5KW(7.5HP) | 6 | 61 | 75 | ||||
| 3.75/1.87 KW | 4-8 | 93/46 | 112/56 | ||||
| 3.75/1.25 KW | 4-8 | 93/30 | 112/37 | ||||
| KFH-1000 | 7.5KW(10HP) | 4 | 12:01 | 123 | 148 | ||
| 5.5KW(7.5HP) | 6 | 82 | 98 | ||||
| 3.75/1.87 KW | 4-8 | 123/61 | 148/74 | ||||
| 3.75/1.25 KW | 4-12 | 123/41 | 148/49 | ||||
| KFK-1000 | 7.5KW(10HP) | 4 | 10:01 | 143 | 172 | ||
| 5.5KW(7.5HP) | 6 | 94 | 116 | ||||
| 3.75/1.87 KW | 4-8 | 143/71 | 172/86 | ||||
| 3.75/1.25 KW | 4-12 | 143/47 | 172/58 | ||||
